At Fortress Foundation Solutions, we recommend foundation push piers to stabilize foundations that are settling or sinking and showing symptoms such as cracked foundation walls, tilting chimneys, and jamming doors and windows.
Our patented system provides effective and permanent repairs for damaged foundations, ensuring that you have a safe, stable home. Give us a call today at 1-844-877-3244 or click below to get a free estimate on foundation repair! We offer free estimates in Bethesda, Lynchburg, Frederick and the nearby areas.
Push piers are made with heavy duty steel and are connected to your foundation by a steel foundation bracket.

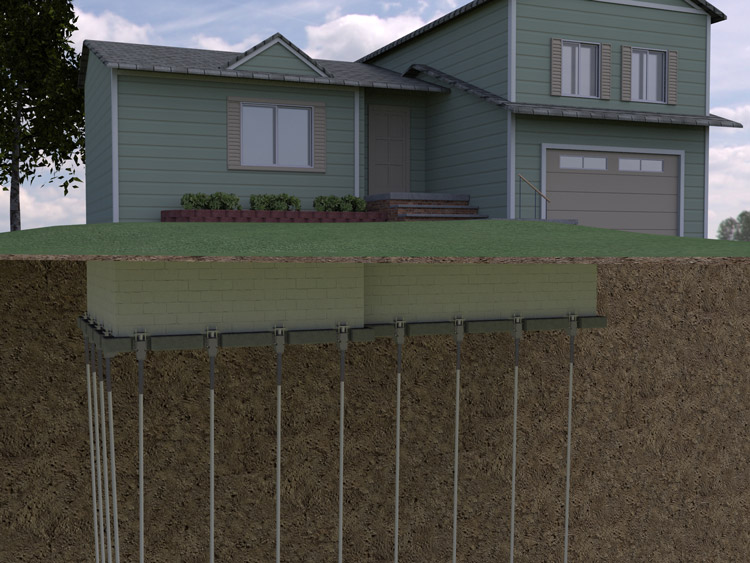

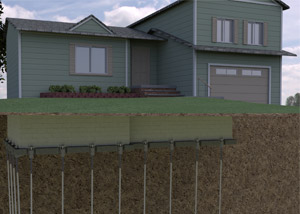

The piers are driven deep below your home in sections until the piers reach strong supporting soils. Steel brackets connect piers to the foundation, effectively transferring the weight of the structure to the deeper load-bearing soil.
The Supportworks Push Pier System permanently stabilizes foundations that are damaged by settlement. Our warrantied solution can be installed on your foundation in four simple steps:
For an outside installation, the soil around your foundation must be excavated so that the footing is exposed. For an inside installation, a section of your slab floor will need to be removed to expose the footing. The slab will be restored after the installation.

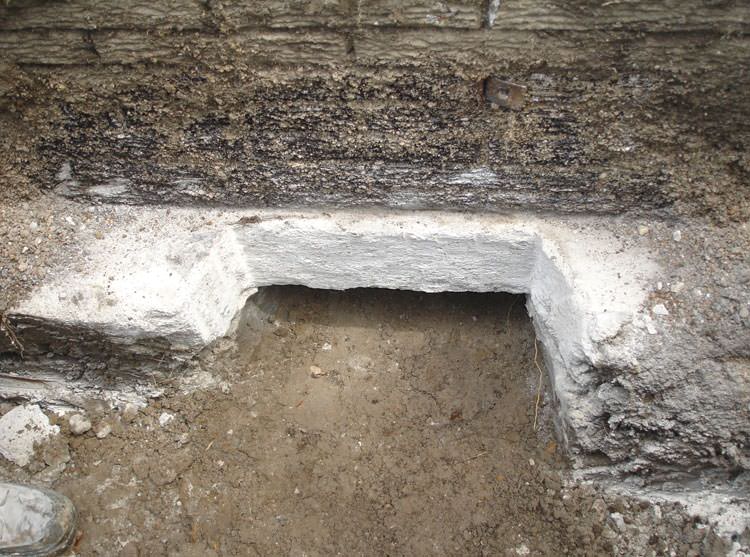

A section of the footing will be prepared for each foundation pier so that the pier is supporting the wall directly, and not simply lifting the section of the footing that extends beyond the walls. This makes for the strongest installation.

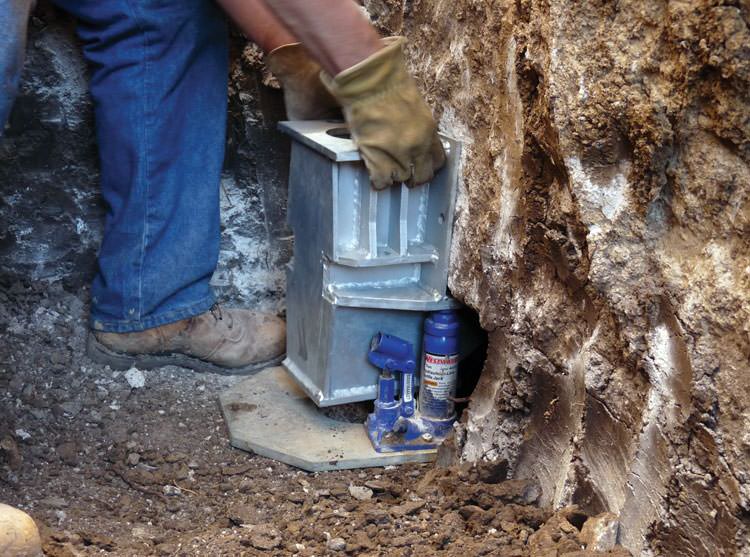

A steel bracket is secured to the foundation footing at each pier location.
With push piers, the foundation bracket is installed before the piers are driven into the earth. This allows the push pier to take advantage of your home's structure, stabilizing the pier as it is advanced deep below your foundation to competent soils.

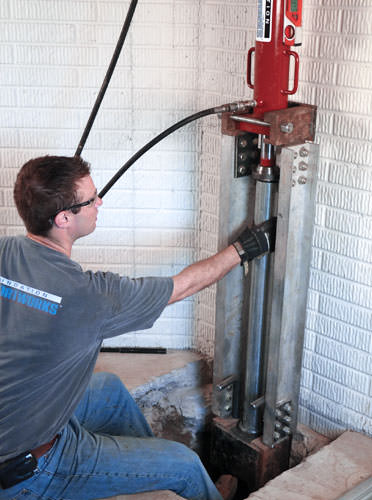

The hollow steel piers are installed in sections, or extensions, that are connected to each other. One at a time, each extension is driven down through the bracket until strong supporting soils or bedrock are reached.
These steel piers are the strongest component of our foundation pier system, and are responsible for transferring the weight of your structure to competent load-bearing soil. Our foundation piers are available with a galvanized steel design. These piers are corrosion-resistant, for long-lasting durability.
Once all foundation piers have been installed, the settlement of your foundation will be permanently halted.

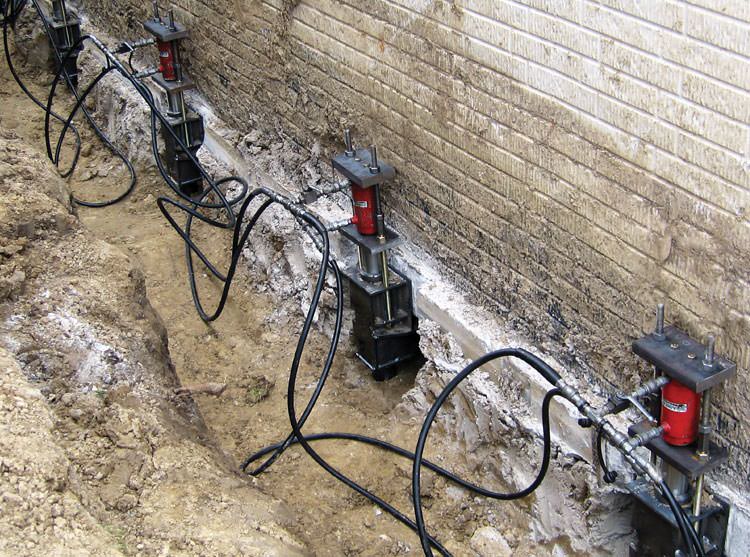

At this time, we will determine if the foundation should remain at its stabilized location or be lifted back to its original position. Following this final stabilization, slabs are repaired and soil is replaced to totally hide the repair.
The reinforced push pier system we use at Fortress Foundation Solutions provides extra support to ensure stability.
The Supportworks push pier system is engineered to handle the heaviest structural loads. As the weight bears down on the foundation bracket, the bracket exerts great pressure on the pier directly beneath the bracket.
This is the most critical point of stress on a foundation push pier system, where extra strength in the pier helps the most. Our push pier system includes a steel sleeve that extends from the bottom of the bracket, reinforcing the pier at this critical point.
The external sleeve strengthens piers during installation as well, which prevents the kinking, buckling, and rotating that is commonly seen during the installation of other push pier systems.
A Word of Warning:
Beware of contractors who tout the strength and capacity of their system's bracket. The foundation bracket is only one piece of the puzzle!

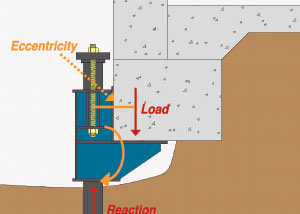

Because push piers are installed adjacent to a foundation footing and not directly underneath, the weight instead bears directly down on the bracket, and the pressure is then transferred down to the pier itself. Engineers refer to this effect as eccentricity.
Because of this eccentricity, all pier systems see the greatest level of bending stress directly below the bottom of the foundation bracket. Installing a steel sleeve on the pier directly below the bracket is a cost-effective way to effectively strengthen your entire pier system.
As a Supportworks contractor, we offer professional installations of push pier systems for structures that are experiencing damage from settlement or sinking.
We provide free, written push pier installation quotes. If you would like to schedule your free on-site inspection, professional consultation, and written system design, call or e-mail us today! Our service area includes Frederick, Bethesda, Lynchburg, Rockville, Roanoke, Silver Spring, Columbia, Gaithersburg, Ellicott City, Germantown and the surrounding areas.
